HX/RWD Series
Rapid Automatic Washer Disinfector
The equipment is designed and produced in strict accordance with the requirements of Ministry of Health <hospital disinfection and supply center cleaning and sterilization technical operation specification>.
The whole decontamination process is physical and dynamic, which greatly reduces the labor intensity to meet the strict demand of the hospital supply center. The equipment can be equipped with different cleaning racks to realize the cleaning and disinfection of a variety of instruments. It has perfect functionality and reliability, and can adapt to the complex cleaning and disinfection environment.
Cleaning chamber volume
198L/308L/480L

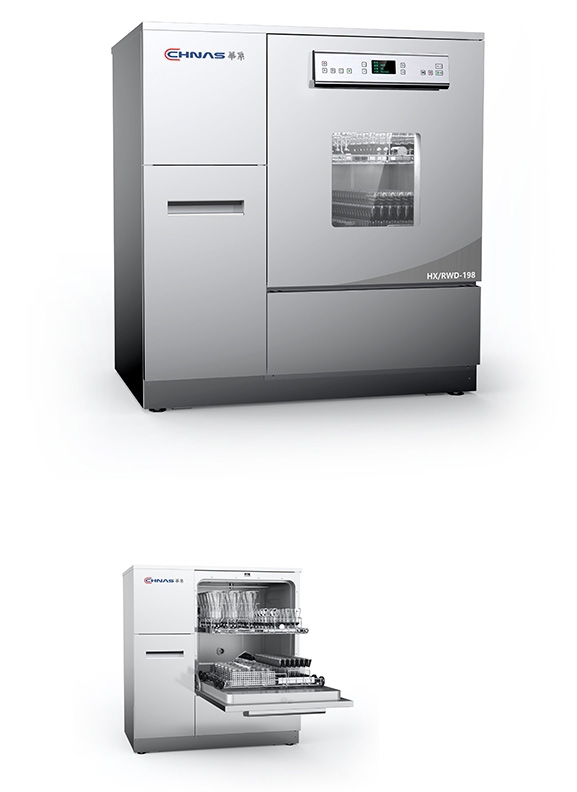

HX/RWD-198 Single door / Cleaning chamber≥198L | |
Basic parameters Power：AC220V/50Hz&AC380V/50Hz Dimensions：930x765x995mm（WDH） Covering material:304 drawing stainless steel Door: Automatic channel type double glass door Cleaning chamber material: 316 stainless steel Forming process of cleaning chamber: compression moulding Cleaning chamber volume：≥198L Cleaning basket: ICA modular basket (with identification) Cleaning basket holder: 1-2 layers Cleaning quantity: according to the number of basket Peristaltic:2-4 units Circulating pump flow rate: 0-600l / min (adjustable) Heating power：4kW/9kW Drying power：2kW Rated power：7kW/12kW | Features Operation interface: stainlesssteel waterproof keyboard Cleaning procedures 35 standardprocedures RS232 interface: standard Network module: optional Conductivity rinse monitoring:standard Cleaning water requirements:purified water Waterway protection system:standard Electronic safety water inletpipe: standard Water filtration system: 4 steps Cleaning agent storage: drawertype Cleaning agent pump in test:electronic detector Maximum cleaning temperature: 95C Temperature sensor：PT1000（accuracy?.1℃） Steam condenser: standard HEPA air filtration system withadjustable drying temperature Installation mode: floor standing |
2-layer basket can be configured
HX/RWD-308 Single door / Cleaning chamber≥308L | |
Basic parameters Power：AC220V/50Hz or AC380V/50Hz Dimensions：935x775x1385mm（WDH） Covering material：304 drawing stainless steel Door: ITL automatic induction door Cleaning chamber material: 316 stainless steel Forming process of cleaning chamber: compression moulding Cleaning chamber volume：≥308L Cleaning basket: ICA modular basket (with identification) Cleaning basket holder：1~3 layers Cleaning quantity: according to the number of basket Peristaltic: 2~4 units Circulating pump flow rate： 0~900L/min（adjustable） Heating power: 4kW/18kW Drying power: 4kW Rated power: 10kW/24kW | Features Operation interface: waterproof stainless steel keyboard / 7-inch LCD screen Cleaning procedures: 35 standard procedures (customizable) RS232 interface: standard Network module: optional Conductivity rinse monitoring: optional Cleaning water requirements: purified water Waterway protection system: standard Electronic safety water inlet pipe: standard Water filtration system: 4 steps Cleaning agent storage: drawer type Cleaning agent pump in test: electronic detector Maximum cleaning temperature：95℃ Temperature sensor：PT1000（accuracy±0.1℃） Steam condenser: standard HEPA air filtration system with adjustable drying temperature Installation mode: floor standing |
HX/RWD-480 Double door / Cleaning chamber≥480L | |
Basic parameters Power：AC380V/50Hz Dimensions：1250x1105x2350mm（WDH） Covering material:304 drawing stainless steel Door: automatic lifting glass door Cleaning chamber material: 316 stainless steel Forming process of cleaning chamber: compression moulding Cleaning chamber volume：≥480L（built-in illuminator） Cleaning basket: ICA modular basket (with identification) Cleaning basket holder：1~4 layers Cleaning quantity: according to the number of basket Loading mode: front through loading (non-clean area / clean area) Double circulating pump flow rate：1300L/min Heating power：9kW/18kW/27kW Drying power：4kW Rated power：15kW/24kW/30kW | Features Operation interface: 7-inch high-definition LCD screen (graphic interface) Cleaning procedures:35 standard procedures (customizable) RS232 interface: standard configuration Network module: standard Conductivity rinse monitoring: standard Cleaning water requirements: purified water Waterway protection system: standard Electronic safety water inlet pipe: standard Water filtration system: 4 steps Cleaning agent storage: drawer type Cleaning agent pump in test: electronic detector Maximum cleaning temperature：95℃ Temperature sensor：PT1000（accuracy±0.1℃） Steam condenser: standard HEPA air filtration system with adjustable drying temperature Installation method: floor standing / embedded partition installation |
This model is suitable for SCCD
Up level basket frame
Double level, fit to injection / un-injection basket.
Combination structure basket
Three levels, including two spray arms. Connecting drying system.
Up level basket frame
To load shelf. Built-in spray arm.
Lower level basket frame
To connect and fix two injection baskets. Auto self-sealing valve
Lower level basket frame
To load tray and shelf.
Lower level basket frame
Double level. Built-in spray arm.
Combination structure basket
Double level, fit to injection / un-injection basket.
Combination structure basket
Three levels, including two spray arms. Connecting drying system.
Combination structure basket
Four levels, including three spray arms. Connecting drying system.
Combination structure basket
Five levels, including four spray arms. Connecting drying system .
Cart
Connected to machine, for loading and supporting baskets.
|
|
